FAW JK6 6x4 Crane Truck 320HP 25T Payload Capacity With XCMG Folding Boom Crane

Name: FAW JK6 6x4 Crane Truck 320HP 25T Payload Capacity With XCMG Folding Boom Crane
Brand: HUBEI CHENGLI SPECIAL AUTOMOBILE CO,.LTD
SKU: camion à grue pliante à flèche
Price: 20000 USD
Availability: InStock

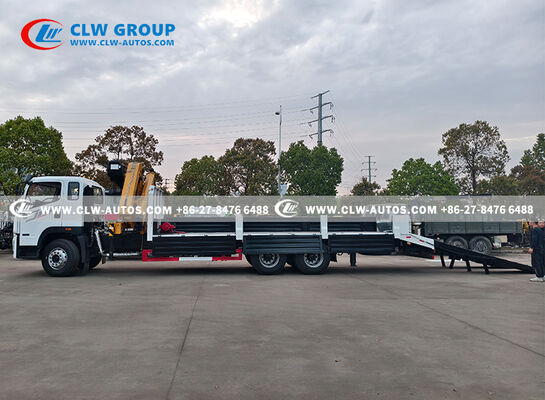

Image Grand : FAW JK6 6x4 Crane Truck 320HP 25T Payload Capacity With XCMG Folding Boom Crane

Détails sur le produit:

Lieu d'origine:	Chine
Nom de marque:	CLW GROUP
Certification:	ISO
Numéro de modèle:	camion à grue pliante à flèche

Conditions de paiement et expédition:

Quantité de commande min:	1
Prix:	20000
Détails d'emballage:	Emballage en tissu pour abri de pluie
Délai de livraison:	30 JOURS
Capacité d'approvisionnement:	10 pièces/mois

Contact

Description de produit détaillée

Matériel:

Acier au carbone

Poids brut du véhicule:

25,000 kg

Mettre en évidence:

FAW JK6 6x4 crane truck with XCMG boom

25T payload capacity crane truck

truck mounted telescopic crane 320HP

FAW JK6 6x4 320HP 25T Folding Boom Crane Truck with Hydraulic Loading Ramp & Rear Outriggers

Product Overview

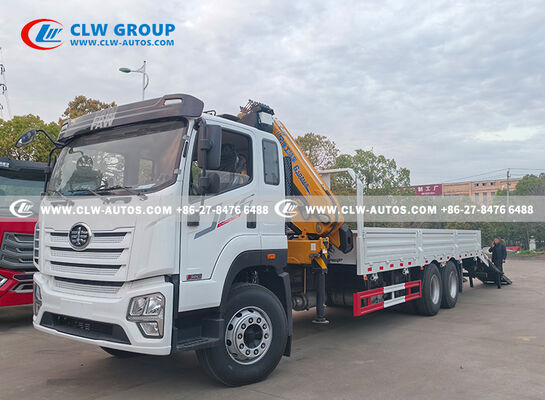

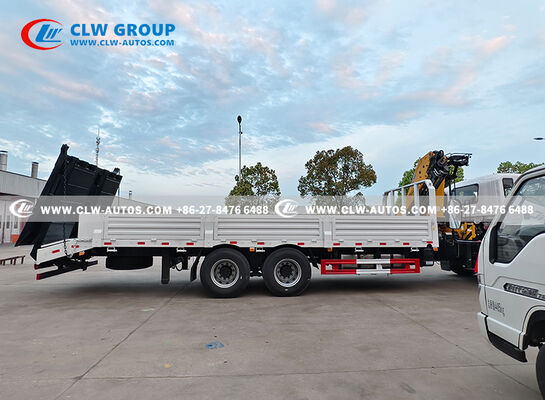

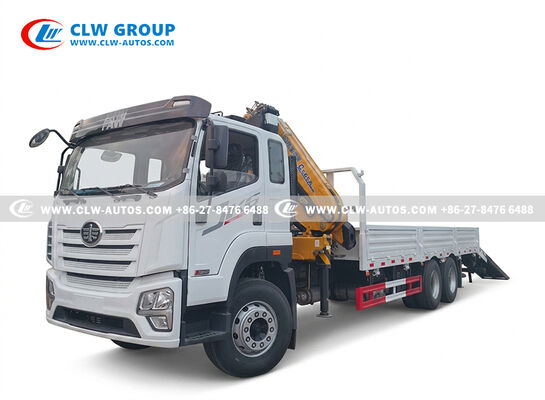

This FAW JK6 crane truck is a multi-functional heavy-duty workhorse designed for both lifting and hauling tasks. Built on a reliable FAW JK6 6x4 chassis powered by a 320hp engine, it features an 8-ton XCMG folding (knuckle boom) crane with 3 telescopic sections, a 16.8 t*m lifting moment, and a built-in hydraulic winch for enhanced pulling power.

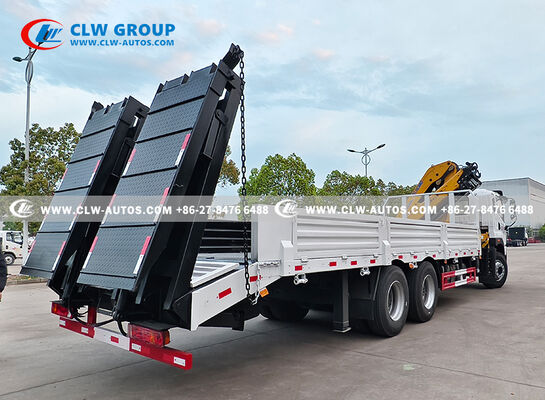

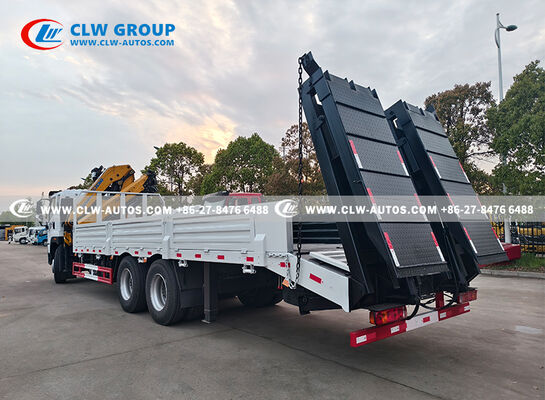

Equipped with a dual-section hydraulic loading ramp at the rear, it allows easy loading and transport of heavy machinery like excavators, forklifts, and other equipment directly on the flatbed cargo body. The rear outriggers provide exceptional stability during lifting operations, while the foldable crane design ensures compact dimensions for road travel.

Technical Specifications

Category	Parameter	Specification
Basic Info	Product Name	FAW JK6 6x4 Folding Boom Crane Truck with Hydraulic Ramp
	Gross Vehicle Weight	25,000 kg
	Payload Capacity	Up to 25 tons (for construction machinery/heavy loads)
Chassis	Make & Model	FAW JK6 6x4
	Cab Type	One-and-a-half row cabin, LHD, with A/C
	Wheelbase	5600 + 1350 mm
	Engine Model	CA6DL1-32E5
	Horsepower	320 HP
	Emission Standard	Euro 5
	Gearbox	9 forward + 1 reverse
	Front/Rear Axle Loading	6700 kg / 13000 kg × 2, with ABS
Tires	12R22.5 16PR, 10 pcs + 1 spare
Crane	Crane Make & Model	XCMG SQZ160 Folding Boom Crane
	Max Lifting Moment	16.8 t*m
	Crane Capacity	8-ton class, 3-section folding boom

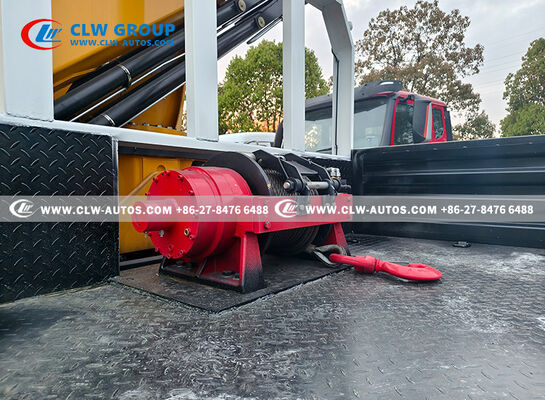

	Winch	Hydraulic winch with steel wire rope and hook
Outriggers	Full set of stabilizers (front + rear) for lifting safety
Body & Ramp	Cargo Body	Reinforced flatbed with diamond plate floor, side gates

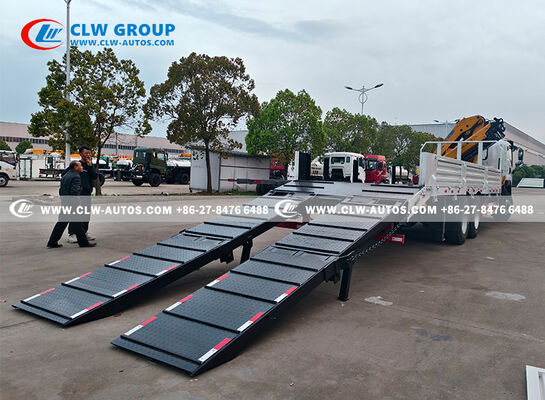

	Loading Ramp	Dual-section hydraulic foldable ramp for heavy machinery loading
	Ramp Capacity	Matched for 25-ton equipment loading

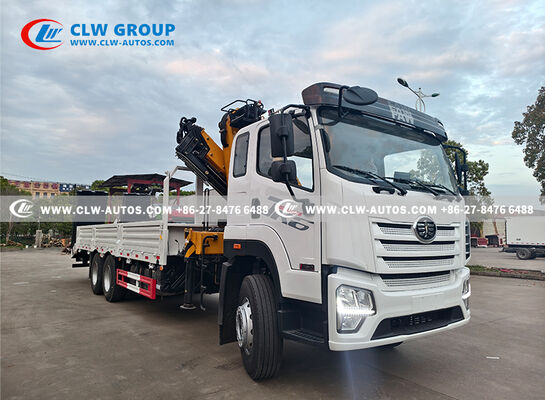

Product Gallery

Key Features

✅ FAW JK6 Chassis: 6x4 drive, 320HP engine, durable and fuel-efficient for long-distance transport

✅ 8T Folding Boom Crane: 3-section articulated arm, max lifting moment 16.8 t*m, hydraulic winch included

✅ Hydraulic Loading Ramp: Dual-section foldable ramp for heavy machinery loading/transport

✅ Full Outriggers: Front and rear stabilizers for safe, stable lifting at full capacity

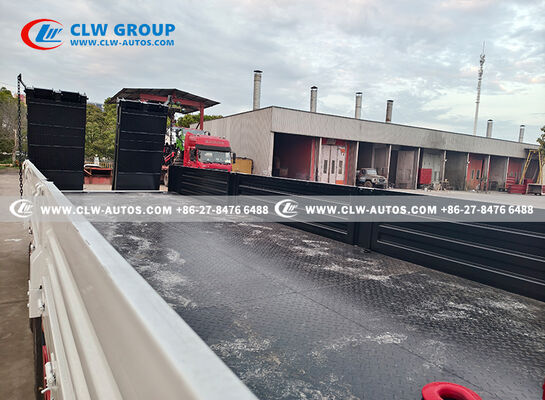

✅ Flatbed Cargo Body: Reinforced diamond plate floor for heavy loads, with side boards

✅ User-Friendly Controls: Side-mounted hydraulic levers for crane and ramp operation

Ideal Applications: Construction, equipment rental, mining, landscaping, and utility projects. This all-in-one truck eliminates the need for separate hauling and lifting vehicles, boosting your operational efficiency and cost-effectiveness.
